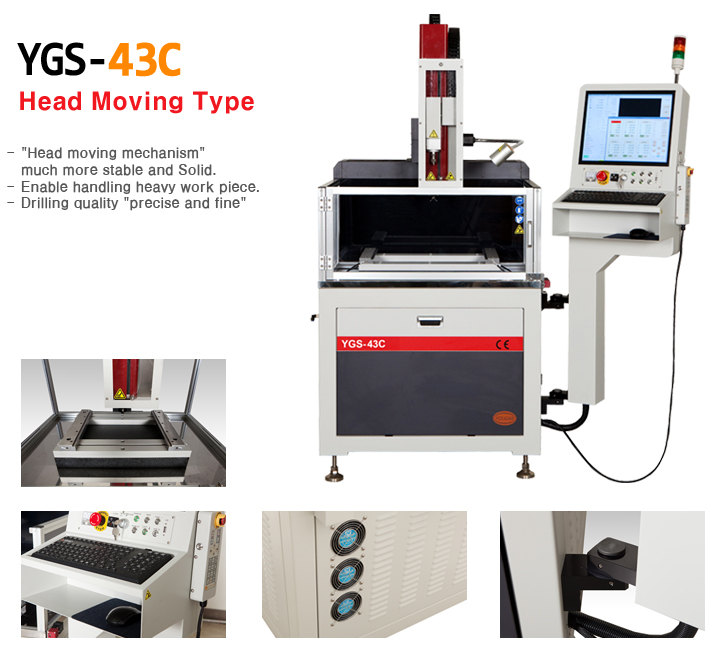

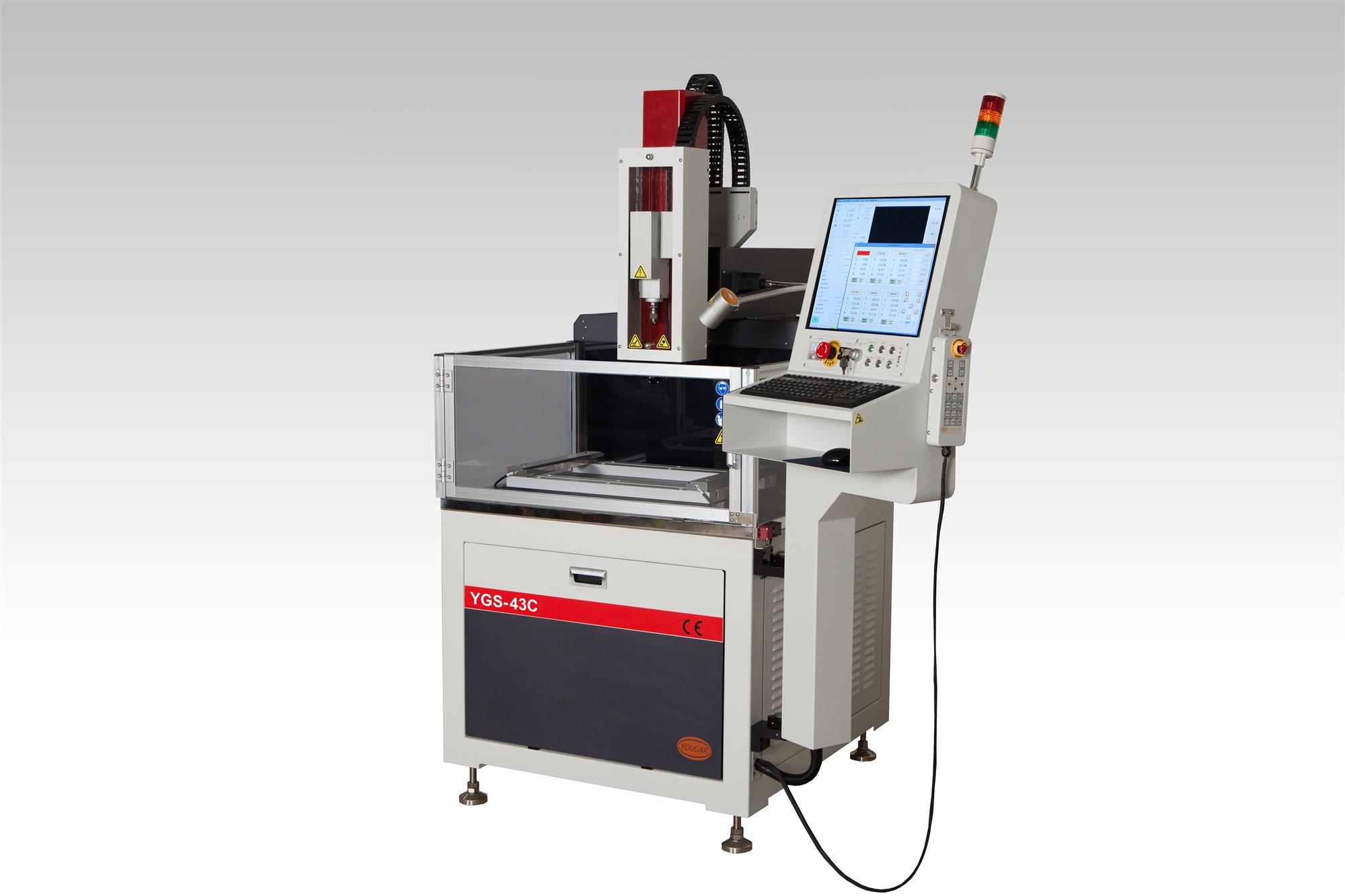

The Yougar YGS-43Z Small Hole EDM Drill Popper features:
Granite Worktable maximizes precision and excellent electrical isolator
Aluminum & Stainless Steel Rail System eliminates the need for expensive fixturing
Dual-Side Cabinet Design completely separates internal plumbing from electrical components
Closed Loop DI Filtration minimizes shop floor footprint and eliminates need to purchase additional filtration units
Step Motors offer excellent stability and high precision drilling with precise resolvability of 0.1µm (.00003937”) on Z, W
Precision Ball Screws offer high speed processing and precise working using 1 µm control purse.
Glass Scale Feedback on X, Y Axis enables closed loop feedback system using glass scales
Linear Motion Guides Extended machine life with the use of linear motion guides on all 4 axes (X, Y, Z, W)
65 Amp Power Supply
LED Worklight
Software Features:
Windows Based Operating System allows for excellent controller flexibility with windows based security features and online Remote Access Service through “TEAM VIEWER”.
32 bit high Digital Signal Processor (DSP) Platform ensures system stability
Program using G and M Code Programming; NC and DXF file reading function
Initial Zero-Set offer automatic reset and depth calculation of Z axis
Soft Start Feature reduces entry point burr formation
Electrode Setting Storage allows for user defined setting management and sample test bank
Automatic Work Piece Pickup ID, OD, cylindrical and shapes
Blind Hole Capabilities offer automatic checking of hole depth and return function
Multiple Work Piece Setup allows for simultaneous programming and machining
On Screen Editing offers point and click programming options with hole elimination
Programmable “W” Axis for variable work piece height capability
X/Y Mirror rotation, exchange and angling
Programmable machining parameters absolute / Incremental input
Dry Run Function with single block option
Pitch error compensation
Drilling timer both cycle time and program time
Data input by USB, CD or Ethernet
